SFC Models
| Photo | Part No. | Description | Quantity | Action |
|---|---|---|---|---|
 |

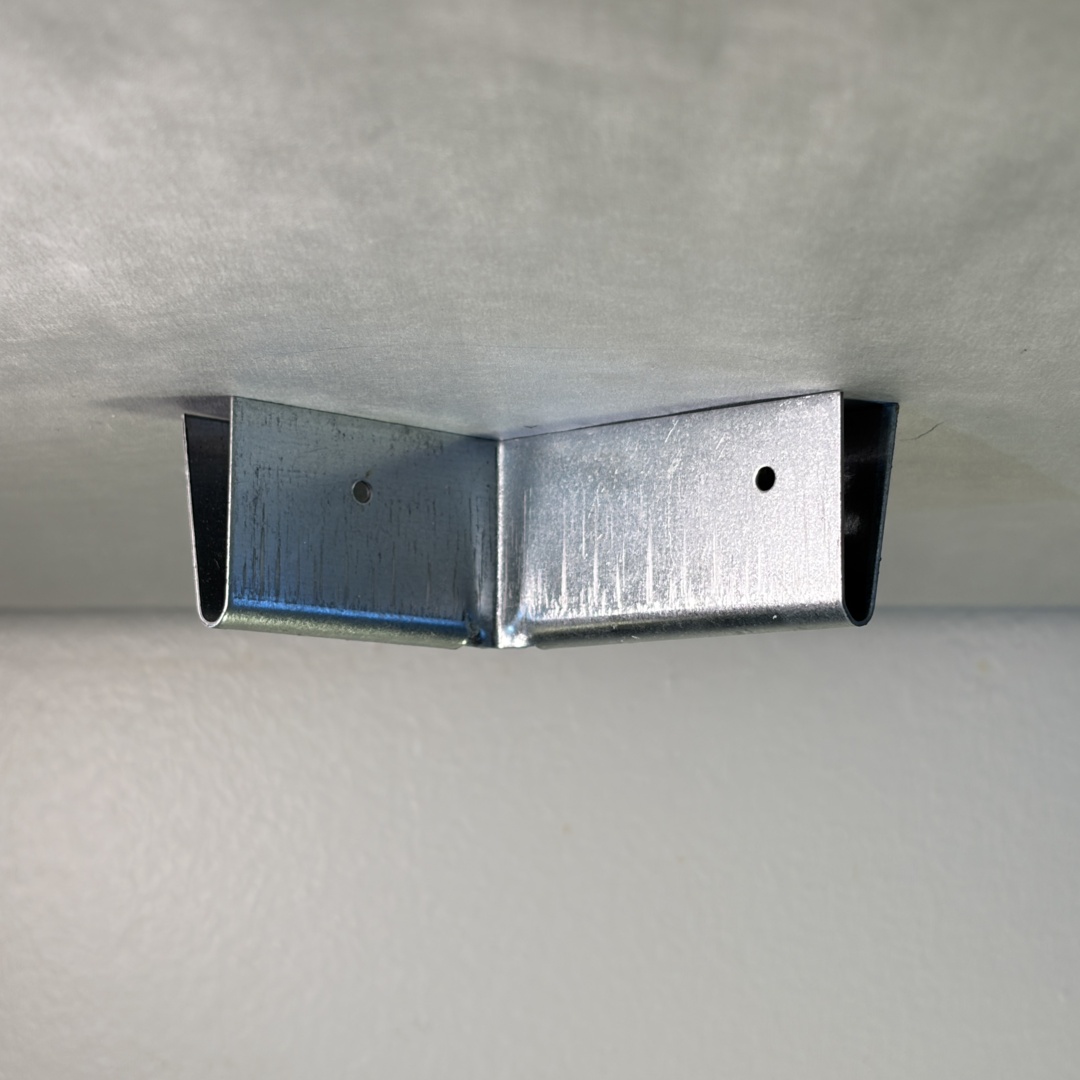

SFC 1CF | Seismic Fixture Clamp for one standard tapered 2' x 2' light fixture. One set of SFC 1 is also required. | 2 SFC/set | |
 |

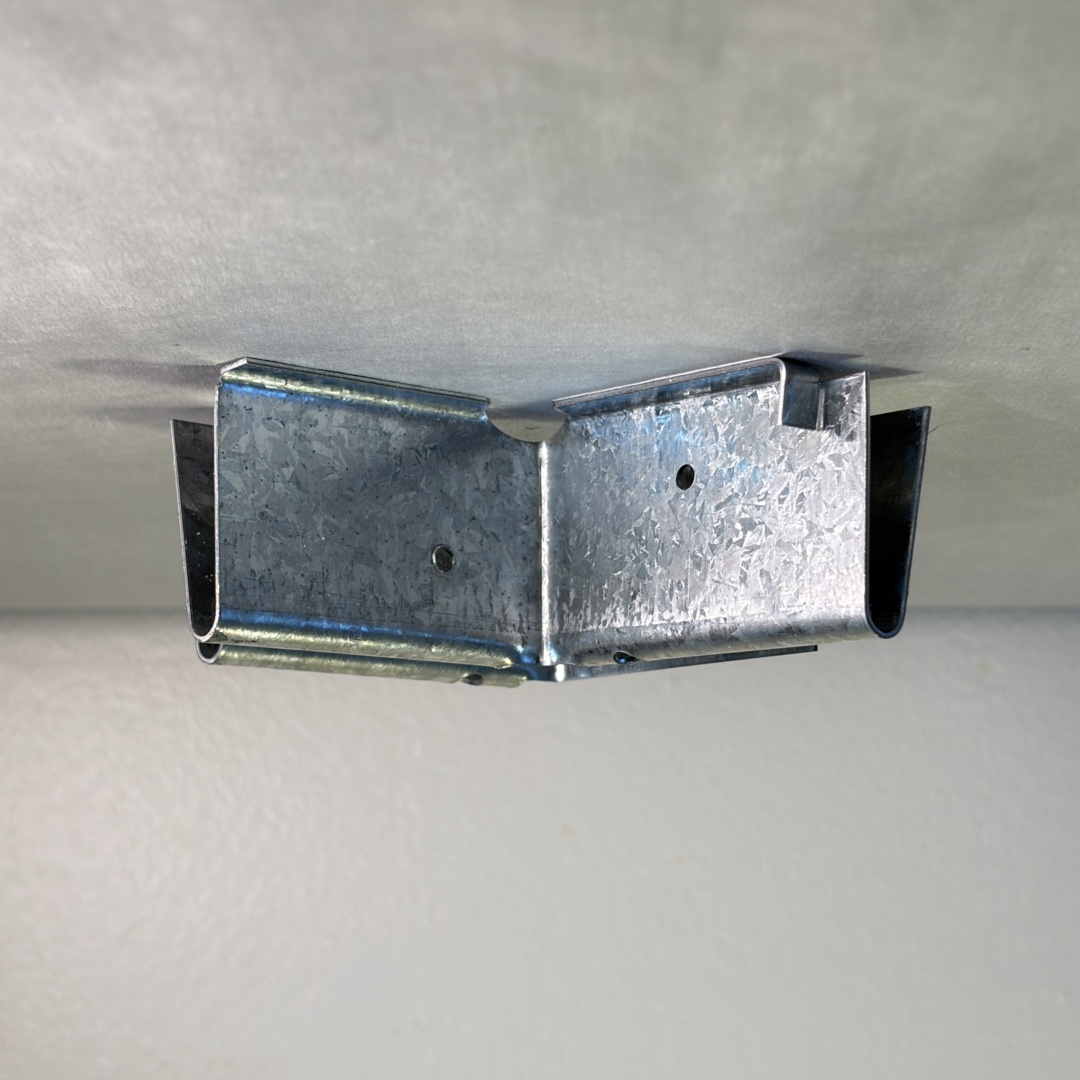

SFC 1E | Seismic Fixture Clamp for two standard tapered 2' x 4' light fixtures end-to-end. One set of SFC 1 is also required. | 2 SFC/set | |
 |

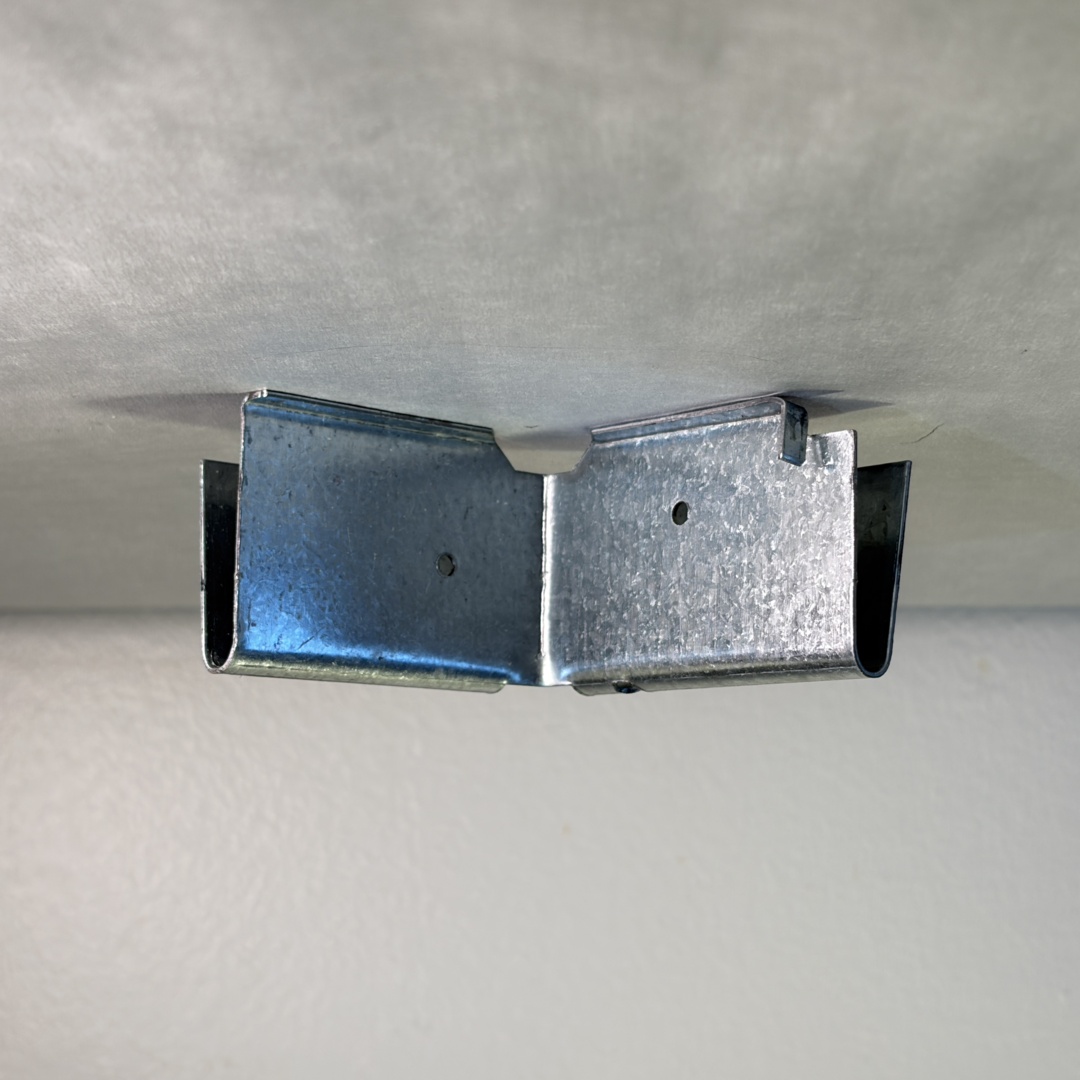

SFC 1 | Seismic Fixture Clamp for 2' x 4' light troffers | 4 SFC/set | |
| No Photo | SFC 1S | Seismic Fixture Clamp for two standard tapered 2' x 4' light fixtures side-by-side. One set of SFC 1 is also required. | 2 SFC/set | |
| No Photo | SFC 1CFS | Seismic Fixture Clamp for reinforcement of T-Bar main runner joints. | 2 SFC/set |
The AGI seismic fixture clamp (SFC) is fabricated from No. 20 gauge galvanized steel complying with ASTM A653 SS grade 33, with minimum yield and ultimate tensile strengths of 33 ksi (228 MPa) and 45 ksi (310 MPa) respectively.
The SFC is cold formed in several configurations for attachment to different orientations of the light fixture (luminaire) to the main and cross runners of the suspended ceiling system.
The different SFC models are used in combination to achieve the patented Unified Ceiling Module benefit for different lighting fixture configurations.
Approvals & Listings
✓ City of Los Angeles RR 25653
✓ Warnock Hersey (listed)
✓ ETL (listed)
✓ Conforms to UL 1598
✓ CSA C22.2 No. 250.00
✓ AC184 Compliant
Meets Seismic Requirements of:
IBC 2006 §1621
UBC 1997 §25.213
NBC 2006 4.1.9.1.15-19
CISCA 0-2 and 3&4
ASTM E 580
DoD UFC 4-010-01
DoD UFC 3-310-04
FEMA 452
TI-809-04
CEC 2002 §30-302
NEC 2002 Art. 410.16(c)
